YOUR DRAWING. A CLEAR MANUFACTURING ROUTE.

Custom gears,
shafts & machined
components.

Engineering coordination, partner manufacturing and inspection planning — built around the requirements of your part.

Prepare your RFQ Explore capabilities

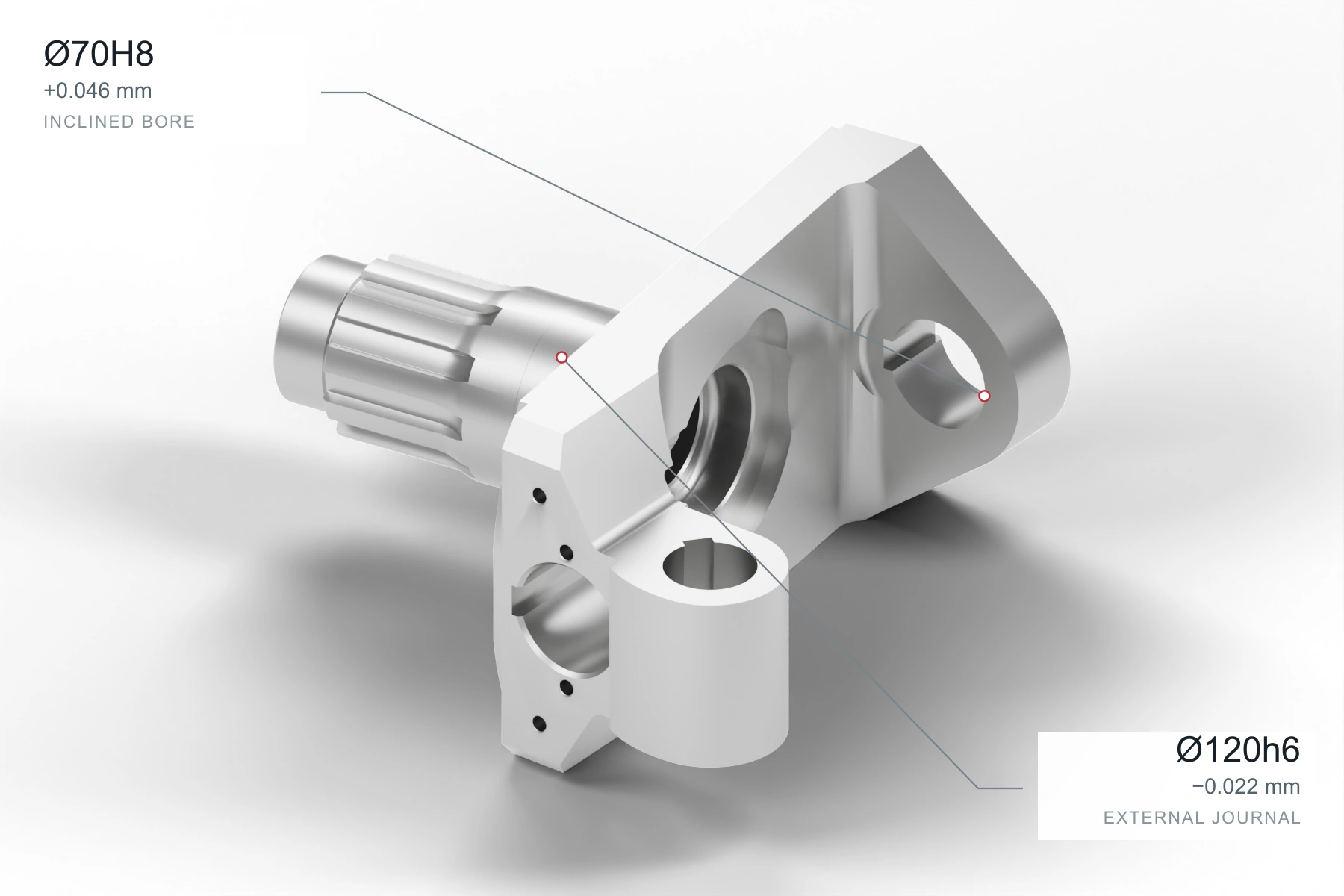

Steering knuckle: CAD studio render with positional drawing callouts
Steering knuckleCAD STUDIO PORTRAIT / DRAWING REQUIREMENTS
Steel 40ХНDimensions mm · Ra µm
Mass 49.3 kgDrawing mass · 05.03.10.00.001
Ø70H8
+0.046 mm
INCLINED BORE
Ø120h6
−0.022 mm
EXTERNAL JOURNAL
0.01 mm
Cylindricity
JOURNAL CYLINDRICITY
Drawing requirements · 05.03.10.00.001
Made to your documentationManufacturing through partner facilities in ChinaRequirements agreed before production

01 / COMPONENT FAMILIES

Start with the part.
Build the right process.

Three areas of focus. A production route selected around geometry, material and acceptance requirements.

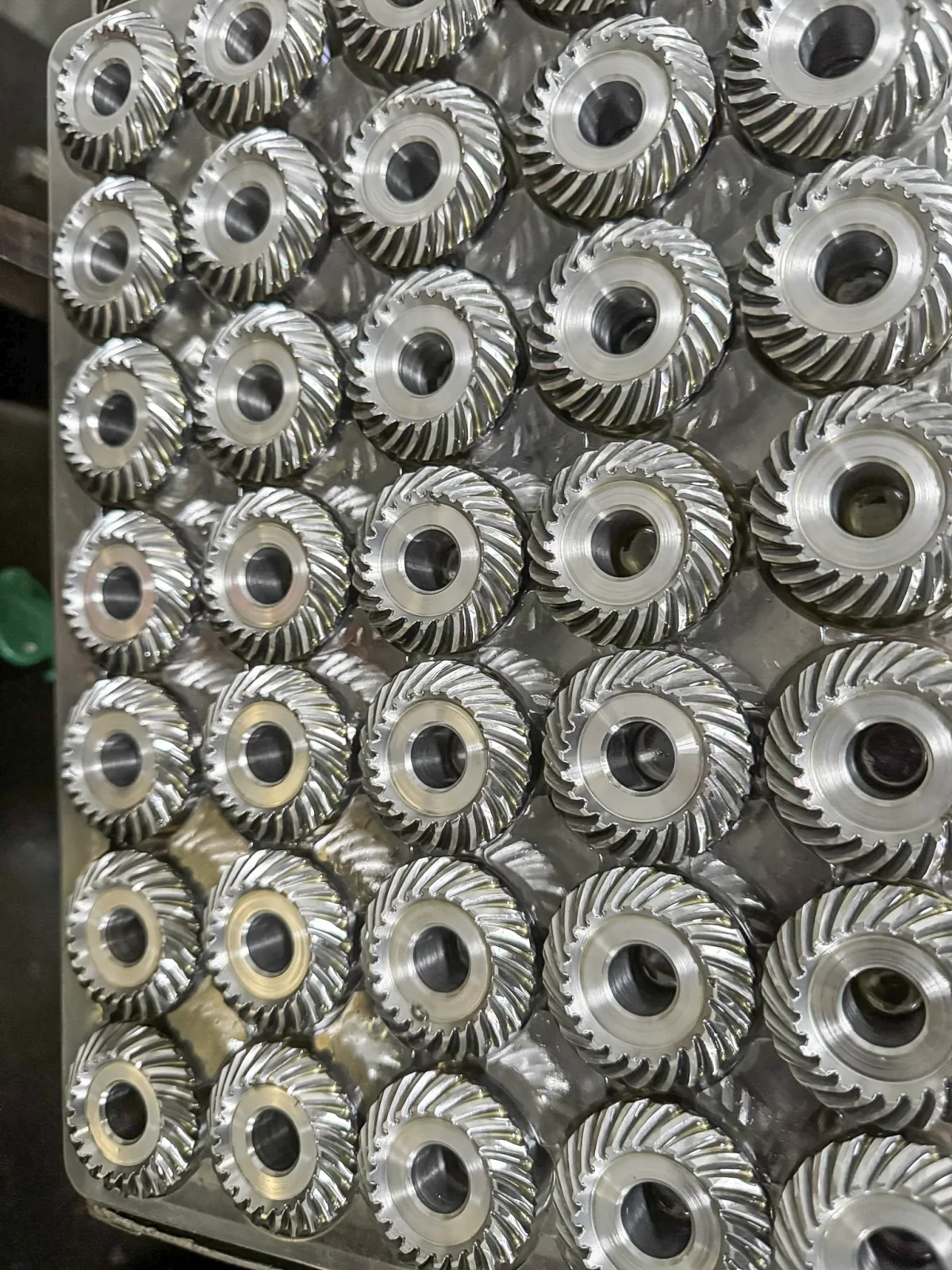

01 / POWER TRANSMISSIONBevel gears arranged on a metal workbench

Gears, shafts & axles

Custom gear components and machined shafts for machinery assemblies.

Prepare a gear enquiry ↗

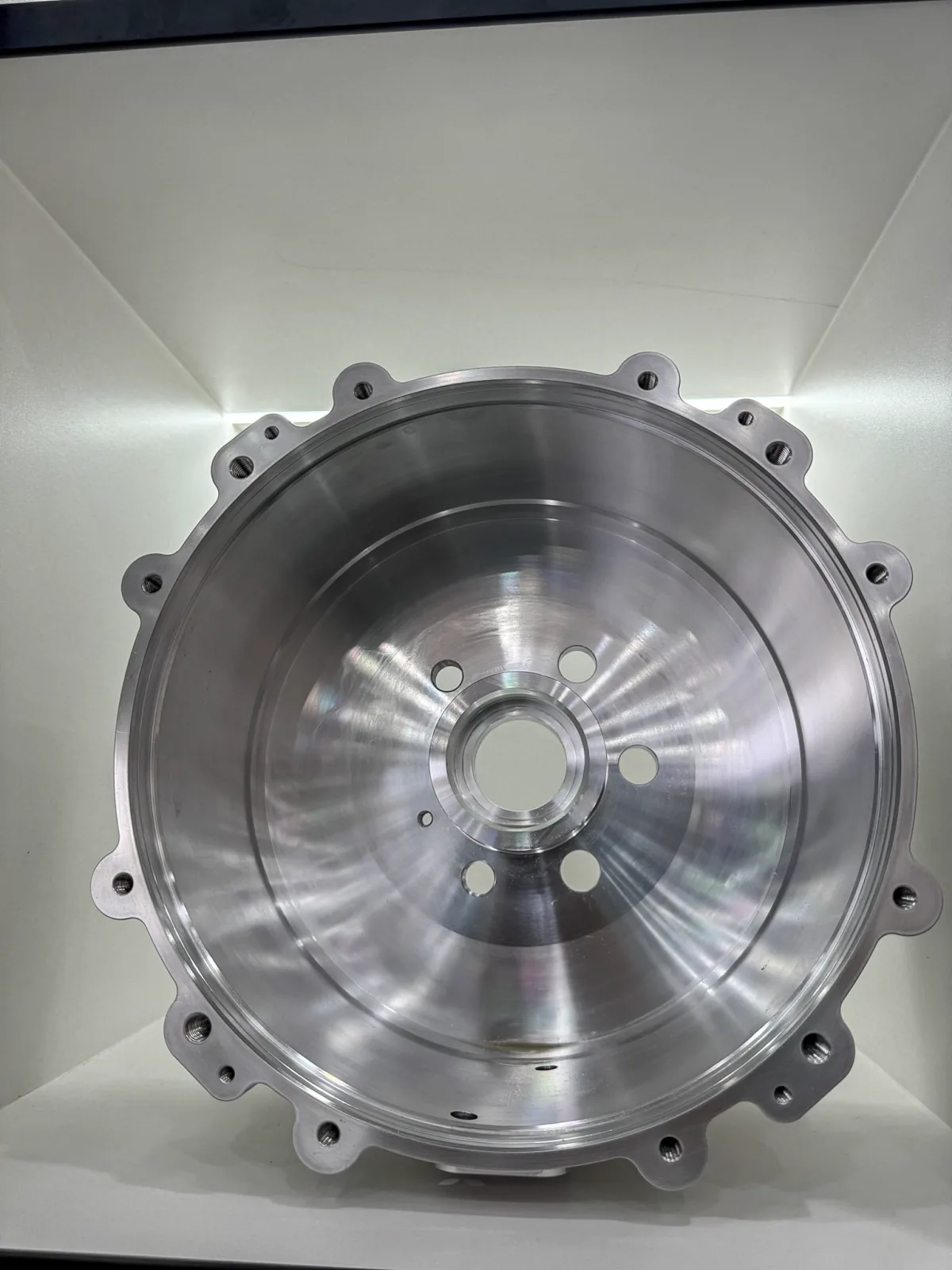

02 / STRUCTURAL COMPONENTSMachined circular housing with a flanged rim

Housings & machined castings

Cast or forged blanks with machining to agreed drawings and specifications.

Prepare a housing enquiry ↗

Portfolio imagery from existing ITM materials. Publication permissions and project attribution are to be confirmed for the international release.

02 / ENGINEERING-LED COORDINATION

One clear route.
From drawing to delivery.

ITM coordinates the project with manufacturing partners. The production site, checks and delivery terms are agreed for each order.

  1. 01

    Define the requirements

    Review the drawing, material, critical features and acceptance criteria.

  2. 02

    Select the production route

    Match the process and partner facility to the part and order requirements.

  3. 03

    Agree the inspection plan

    Define what will be checked and which records the project needs.

  4. 04

    Coordinate delivery

    Confirm packaging, documentation and shipment terms for the approved destination.

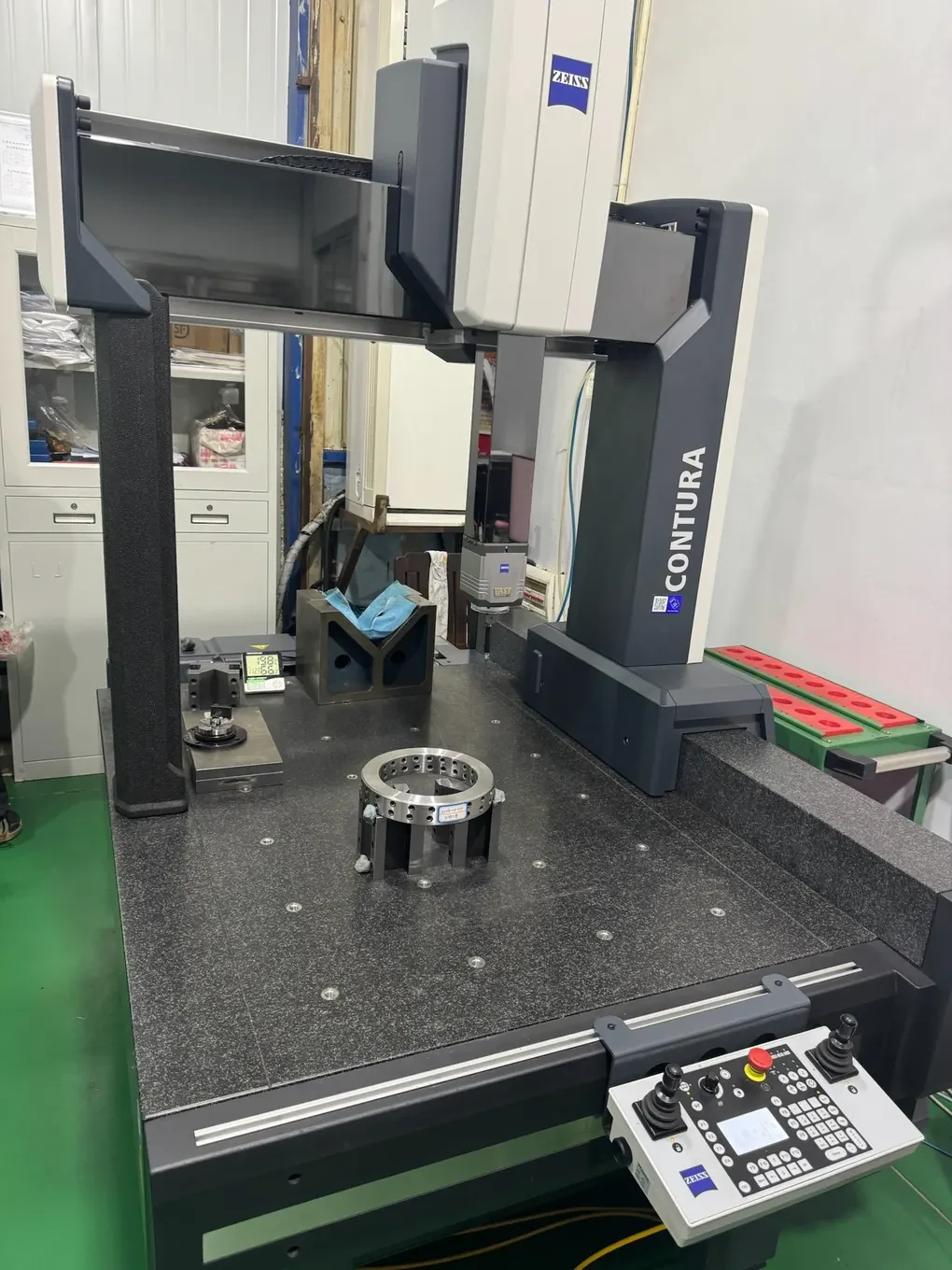

Coordinate measuring machine at a manufacturing partner facility
MEASURING EQUIPMENT / ITM PARTNER-FACILITY MATERIAL

03 / QUALITY STARTS WITH THE SPECIFICATION

Critical features.
Agreed checks.
Clear records.

A drawing establishes the requirements. An inspection plan establishes how they will be verified.

Before production
Agree critical dimensions, surface requirements and acceptance criteria.
During the project
Coordinate the checks required by the specification and production route.
At acceptance
Provide the inspection records agreed for the order.

Available measurement methods and documentation are confirmed per project.

04 / FOR DISTRIBUTORS & INDUSTRIAL PARTNERS

A technical partner
behind your enquiry.

Discuss a component family, recurring procurement need or customer project. Start with the technical scope and the market you serve.

Partner arrangements, territories and commercial responsibilities are negotiated individually.

Download the partner enquiry outline ↗

05 / YOUR NEXT COMPONENT

Bring the drawing.
Define the brief.

A useful enquiry helps the engineering team assess the manufacturing route and prepare a relevant quotation.

Include in your enquiry

  • Part drawing or CAD file and revision
  • Material and required finish
  • Quantity and expected repeat orders
  • Critical tolerances and inspection records
  • Requested delivery date and destination
  • Confidentiality requirements
Download the RFQ outline
